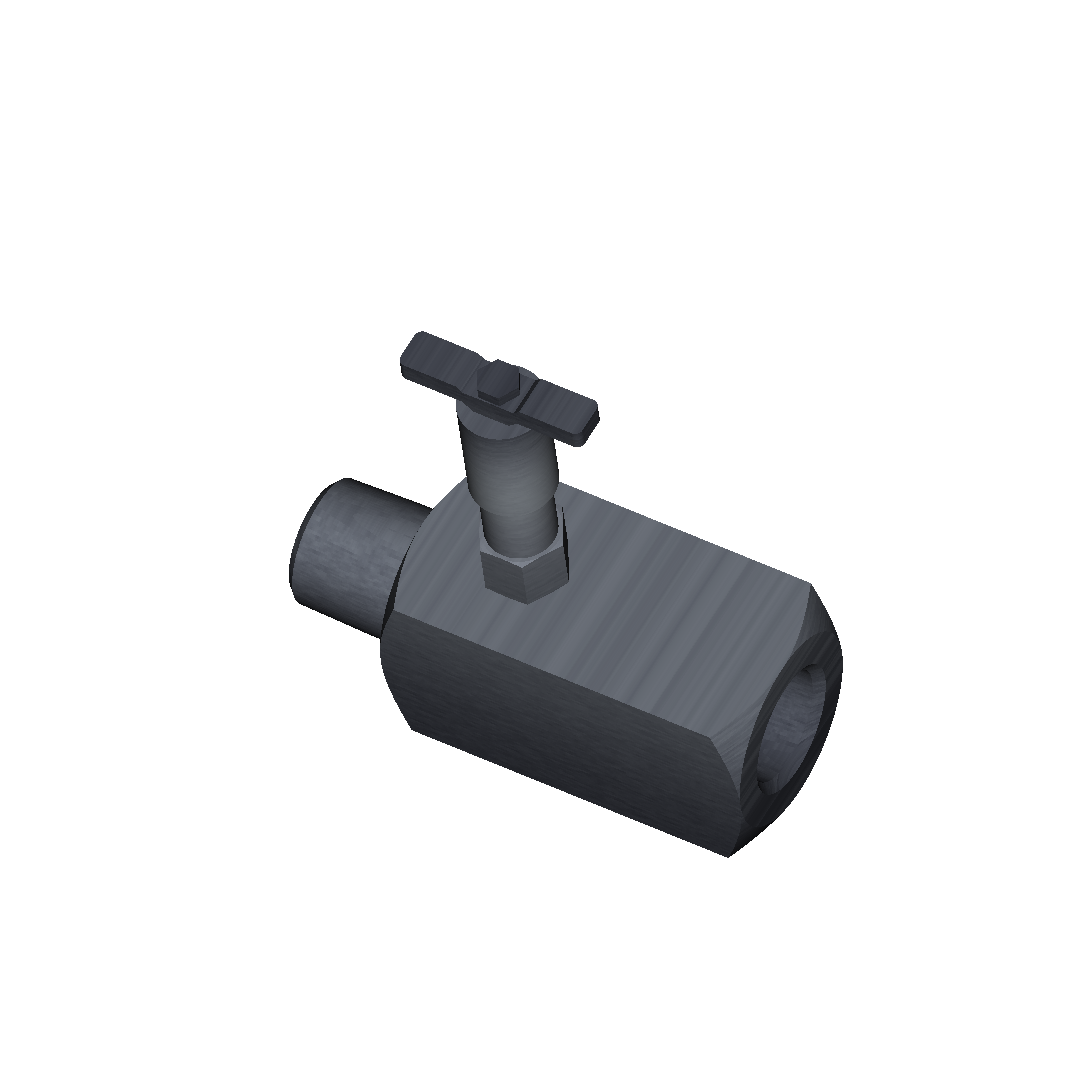

6801L8Y
Hoke Hoke Gauge Valve 6000 psi 316 316 1/2"NPT-M 1/2"NPT-F
Bleed Valves
The Hoke 6800 Series gauge valves are heavy-duty isolation valves designed for pressure gauges, transmitters, and instrumentation systems operating under high-pressure conditions. These valves feature a robust bar stock 316 stainless steel body combined with a non-rotating hardened stem tip that minimizes seat galling and ensures reliable metal-to-metal shutoff performance. The packing is positioned below the stem threads to reduce contamination and prevent lubricant washout, contributing to extended service life and smooth operation. Many models are furnished with an integral bleed plug for safe venting and calibration functions. Operating pressures are rated up to 6000 psig (414 bar) depending on temperature and configuration. Typical applications include pressure gauge isolation, instrument protection, calibration systems, hydraulic service, and process instrumentation in demanding industrial environments
Body material:
Seat:
Stem:
Working pressure:
Temp max:
Temp low:
Temp high:
SS316/316L
SS316L
PTFE
6000 psi
232°C
-54°C
232°C
Connection A size:
Connection A type:
Connection A gender:
Connection B size:
Connection B type:
Connection B gender:
1/2"
NPT
male
1/2"
NPT
female
• Corrosion-resistant bar stock 316 stainless steel bodies
• Packing located below stem threads to prevent contamination and lubricant washout
• Hardened 17-4 PH two-piece, non-rotating stem point minimizes seat galling
• Low-profile bonnet assembly and large diameter stem reduce damage to bonnet and stem assembly
• Roll pin locks bonnet in the valve body to prevent accidental removal
• Choice of 5⅜" long body for standard process use or 7⅜" body for insulated piping applications
• Three outlets meet individual gauge requirements
• Polyethylene cap protects stem and bonnet from external damage
• Rugged large handle provides easy grip and control
• All models are stamped with maximum operating pressures on the valve body
