7188G6Y

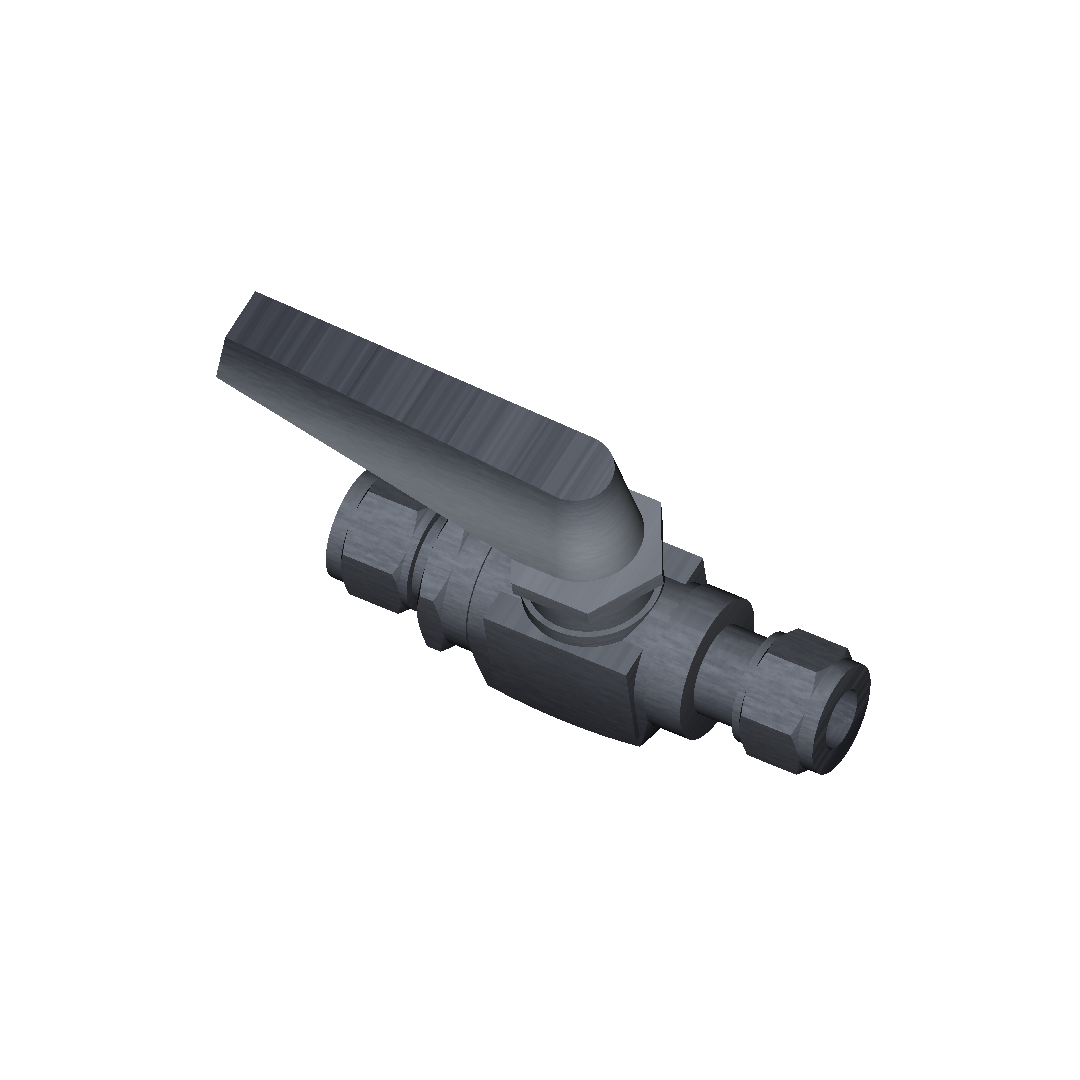

HokeFlomite 2-way Integral Panel Mount Ball Valves 6000 psi 316 3/8"OD-F 3/8"OD-F
Flomite 2-way Integral Panel Mount Ball Valves
The Hoke 7188 Series ball valves are compact quarter-turn instrumentation valves designed for dependable shutoff performance in high-pressure gas and liquid systems. Part of the Ultramite™ 70 Series, these valves feature a floating ball design that provides bubble-tight sealing, smooth operation, and low operating torque throughout extended service life. The welded body construction enhances safety and structural integrity by preventing accidental disassembly during operation or maintenance. Reinforced seat materials and Hoke’s Dyna-Pak® stem sealing system ensure reliable leak-tight performance in both vacuum and pressure applications. Constructed primarily from 316 stainless steel, the series offers excellent corrosion resistance and compatibility with demanding industrial media. Typical applications include analyzer systems, process instrumentation, hydraulic service, sampling systems, and compact isolation duties requiring reliable quarter-turn shutoff valves.
Body material:
SS316/316L
Connection A size:
Connection A type:
Connection A gender:
Connection B size:
Connection B type:
Connection B gender:
3/8"
OD
female
3/8"
OD
female
• Quarter-turn handle provides a visual indication of on/off valve position
• Dual encapsulated TFE seats and microfinished ball ensure a leak-tight seal
• Dyna-Pak® packing offers a leak-tight seal with low operating torque
• Floating ball design provides pressure-assisted sealing and wear compensation
• Variety of HOKE Gyrolok® end fittings or pipe fittings available
• Special high-tolerance NPT thread ensures secure and leak-tight connections
