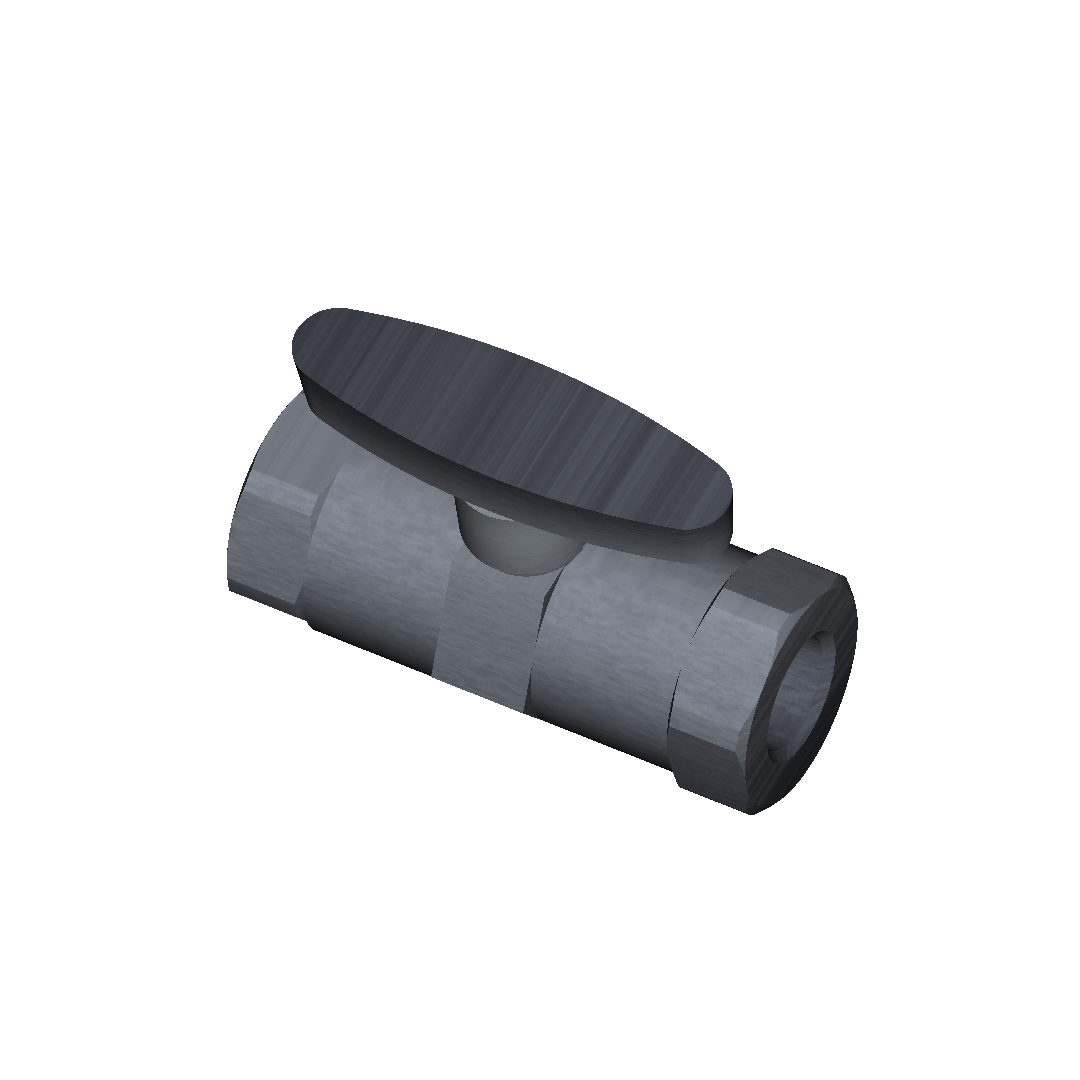

7092F8Y
HokeUltramite™ Fixed End Ball Valves 2000 psi 316 1/2"NPT-F 1/2"NPT-F
Uni-directional, High Cycle, Zero Leak Ball Valves
The Hoke 7092 Series ball valves are compact 2-way quarter-turn valves designed for reliable shutoff service in medium-pressure gas and liquid systems. Part of the Ultramite™ 70 Series, these valves feature a welded body construction that improves structural integrity and helps prevent accidental disassembly during operation. The floating ball design provides bubble-tight sealing, low operating torque, and extended cycle life, while TFE seats and sealing components ensure dependable leak-tight performance in corrosive and general industrial applications. Constructed in materials including 316 stainless steel, brass, and Monel®, the series supports operating pressures up to 2000 psig (138 bar) depending on configuration. Typical applications include slurry handling, refinery pilot plants, pneumatic systems, corrosive media service, and general instrumentation isolation duties.
Body material:
SS316/316L
Connection A size:
Connection A type:
Connection A gender:
Connection B size:
Connection B type:
Connection B gender:
1/2"
NPT
female
1/2"
NPT
female
• Fixed end fittings prevent accidental disassembly, enhancing safety
• Oval trip-proof handle helps prevent accidental actuation
• Quarter-turn handle provides a visual indication of on/off valve position
• Floating ball provides pressure-assisted sealing and temperature wear compensation
• Encapsulated seats extend cycle life, reducing cost of ownership
• Check seals improve leak tightness, increasing seat life
• Special high-tolerance NPT thread ensures secure and leak-tight connections
